Cannon's First Light-Weight Chainsaw Bar

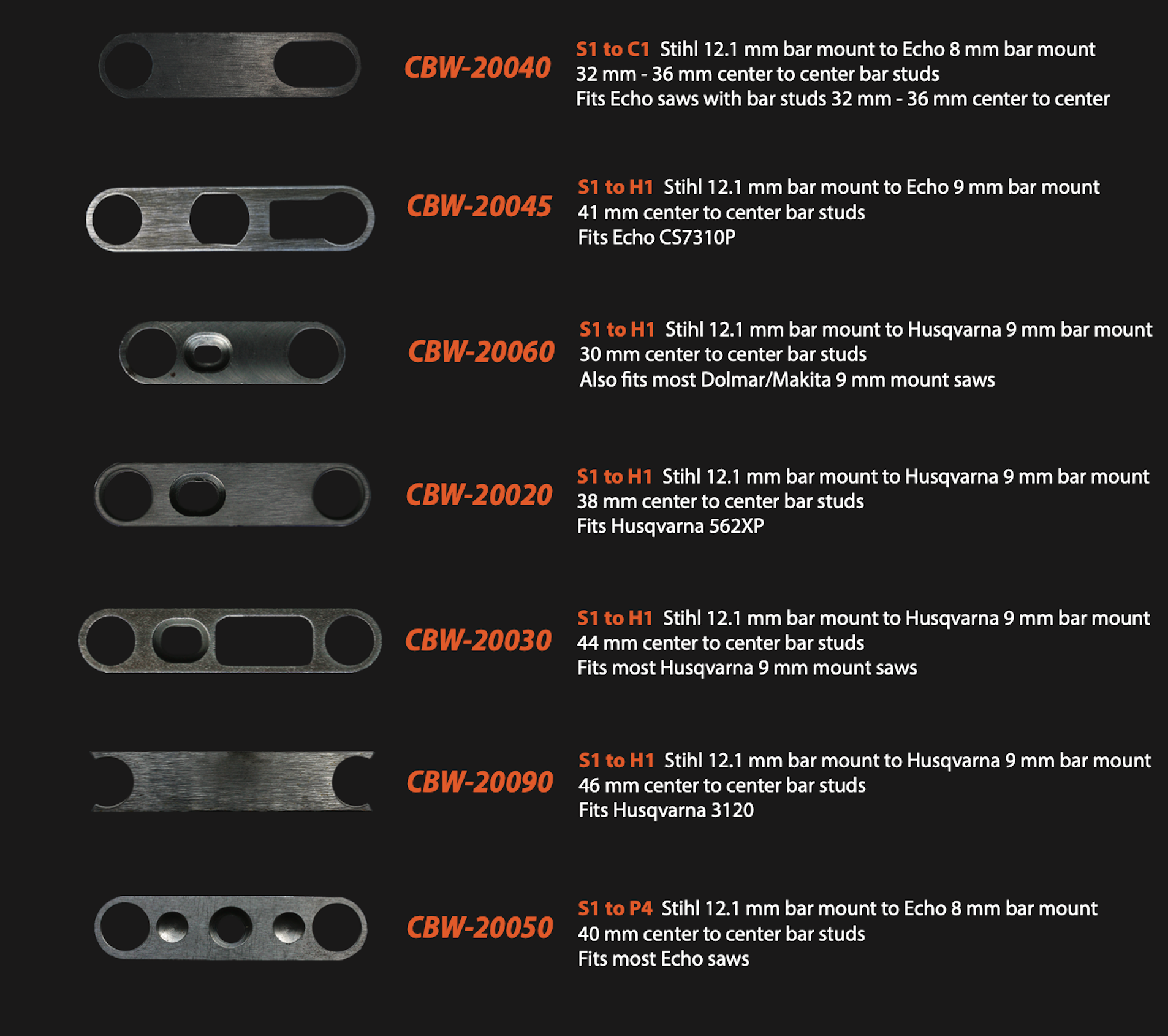

This bar comes with the CBW-20030 bar adapter allow compatibility with the Husqvarna large mount small bolt pattern of mid-range saws like the 572XP with a 1.75" or 44mm center-to-center bolt pattern.

The Cannon DuraLite SuperBar is currently available in lengths 20", 24", 28", 32", and 36" in our S1 mount pattern, which has a 12.1 mm bar stud slot and fits directly onto most Stihl chainsaws.

The new Cannon DuraLite SuperBar is made from a virtually completed SuperBar. After the bar has been grooved and the rails have been flame hardened, we eliminate weight by milling out pockets on either side of the SuperBar, leaving a steel core in the center for strength. The center section is then perforated with holes. This method of construction is based on the same principal that one would see in an I-beam.

We then use a special adhesive which not only bonds the steel to two flexible aluminum inserts, one on each side of the bar, but also creates a chemical bond or weld between the two inserts. The new DuraLite SuperBar remains ridged and durable, has the same quality characteristics as the traditional SuperBar, but weighs up to 25% less.
